W73 Sporting Rifle

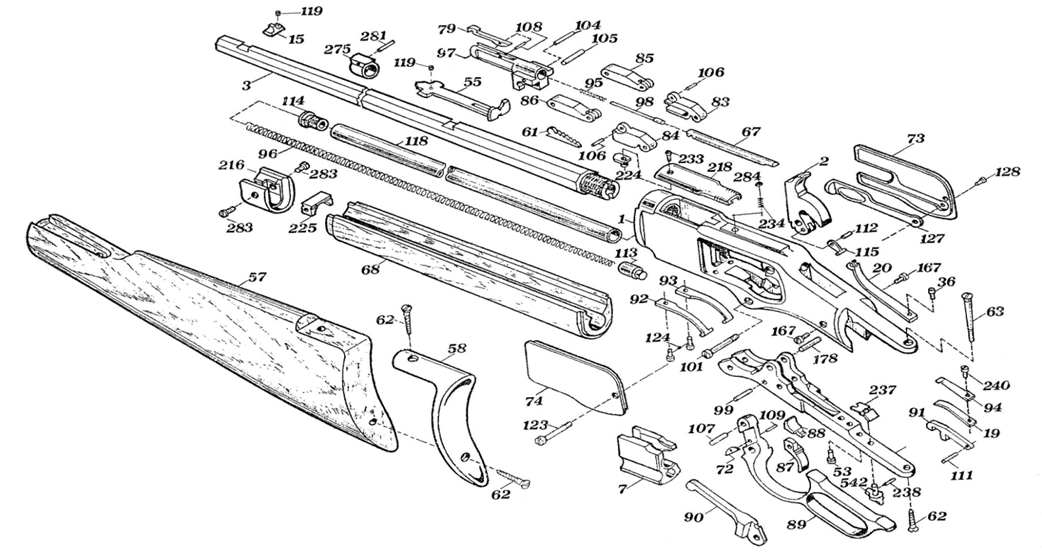

1873 Rifle

w73carbine4440, 38sp, 357mag, 45colt

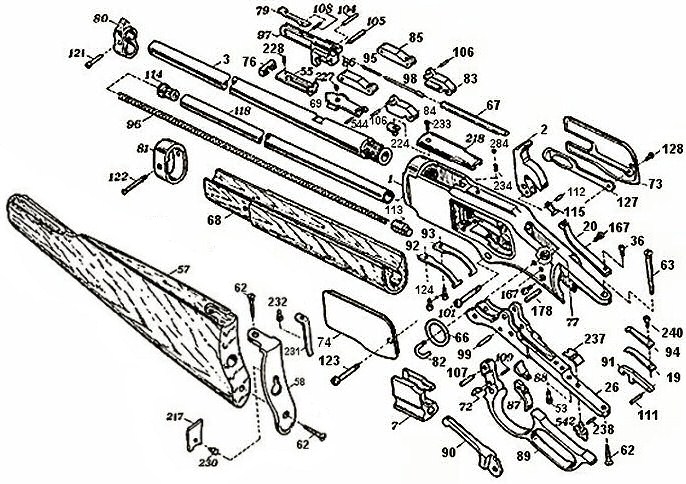

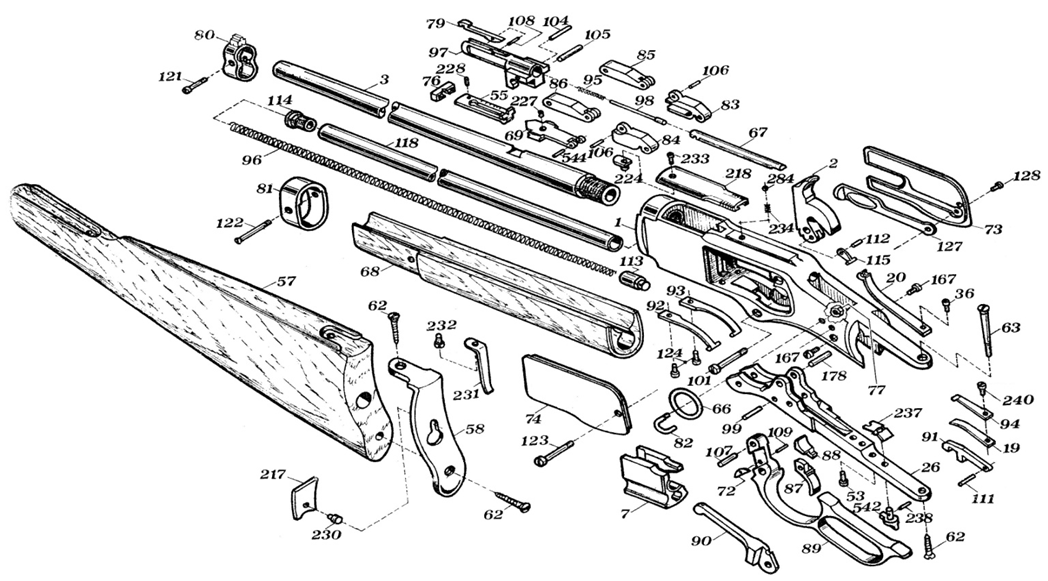

1873 Carbine

ILL#   Benusa#   Code No.   Description
1 N/A 0240001 Frame Assembly .45LC .44-40 .38-40
1 N/A 0250001 Frame .357Mag Assembly
1 N/A 0275001 Frame .45-44/40 Pistol Grip
1 N/A 0276001 Frame .357Mag Pistol Grip
2 360002 0240002 Hammer Assembly
3 360041 0211003 Trapper Carbine Barrel .45LC 16 1/8"
3 360042 0233003 Trapper Carbine Barrel .44/40 16 1/8"
3 360043 0273003 Trapper Carbine Barrel .357Mag. 16 1/8"
3 360025 0240003 Carbine Barrel .19"  .44/40
3 360024 0248003 Carbine Barrel .19"  44Sp
3 360029 0254003 Carbine Barrel .19"  32/20
3 360026 0251003 Carbine Barrel .19" .38/40
3 360027 0270003 Carbine Barrel .19" .357Mag.
3 360023 0280003 Carbine Barrel .19" .45LC
3 360034 0271003 Rifle Barrel  20" .357 Mag.
3 360032 0241003 Rifle Barrel  20" .44/40
3 360030 0281003 Rifle Barrel  20" .45 LC
3 360033 0283003 Rifle Barrel  20" .38/40
3 360031 0285003 Rifle Barrel  20" .44 Sp.
3 360036 0293003 Rifle Barrel  20" .32/20
3 360017 0242003 Rifle Barrel  24.1/4" .44/40
3 360018 0249003 Rifle Barrel  24 1/4" .44Sp.
3 360021 0252003 Rifle Barrel  24 1/4" .38Sp.
3 360022 0255003 Rifle Barrel  24.1/4" .32/20
3 360019 0264003 Rifle Barrel  24 1/4" .38/40
3 360020 0272003 Rifle Barrel  24 1/4" .357Mag.
3 360016 0282003 Rifle Barrel  24 1/4" .45LC
3 360013 0266003 Half-Octagon Barrel 24 1/4"  .45LC
3 360015 0268003 Half-Octagon Barrel 24 1/4" .44/40
3 360014 0269003 Half-Octagon Barrel 24 1/4" .357Mag
3 360005 0284003 Rifle Barrel  30" .45LC
3 360006 0244003 Rifle Barrel  30" .44/40
3 360008 0245003 Musket Barrel 30" .44-40
3 360007 0246003 Musket Barrel 30" .45 LC
3 360009 0247003 Musket Barrel 30"  .357 Mag
7 360103 0220007 Carrier Block  .38Sp - 32/20
7 360104 0230007 Carrier Block .44Sp-.44/40-.45LC-.38/40
15 360113 0202015 Rifle Front Sight 24.1/4"
15 360116 0207015 Musket Front Sight
15 360118 0241015 Rifle Front Sight 20"
15 360119 0244015 Rifle Front Sight 30"
19 360122 0240019 Trigger Spring
20 360126 0200020 Main Spring
20 360127 0292020 Pistol Grip Main Spring
26 360131 0240026 Lower Tang
26 360132 0275026 Pistol Grip Lower Tang
36 360137 0200036 Main Spring Screw   (10-32)
53 360138 0240053 Main Spring Adj. Screw   (5mm X 0.8mm)
55 360142 0240055 Carbine Rear Sight Assembly
55 360143 0242055 Rifle Rear Sight Assembly
55 360145 0245055 Musket Rear Sight Assembly
57 360148 0200057 Carbine & Musket Butt Stock
57 360149 0202057 Rifle Butt Stock and Butt Plate
57 360151 0275057 Checkered Pistol Grip Butt Stock
58 360159 0240058 Carbine & Musket Butt Plate
58 360160 0242058 Rifle Butt Plate
61 360163 0242061 Rear Sight Ramp
62 360164 0200062 Butt Plate Screw
63 360170 0240063 Tang Screw   (5mm X 0.8mm)
63 360171 0275063 Pistol Grip Tang Screw   (5mm X 0.8mm)
66 360174 0200066 Carbine Saddle Ring
67 360176 0240067 Firing Pin Extension
68 360180 0200068 Carbine Forend
68 360181 0202068 Rifle Forend
68 360420   Short Rifle Forend Checkered
68 360413 0241068 Short Rifle Forend
68 360183 0245068 Musket Forend
69 360189 0240069 Carbine Rear Base
72 360190 0200072 Cam Lever
73 360195 0240073 Right Side Plate
74 360199 0240074 Left Side Plate
76 360201 0240076 Rear Sight Elevation Slide
77 360202 0200077 Carbine Saddle Ring Hook Nut
79 360209 0240079 Extractor  .38/40-.44Sp-.44/40-.45LC
79 360210 0250079 Extractor .32/20-.38Sp-.357Mag.
80 360220 0240080 Carbine Front Band
80 360221 0245080 Musket Front Band
81 360222 0200081 Carbine Forend Band
81 360223 0207081 Musket Forend Band
82 360224 0200082 Carbine Saddle Ring Loop
83 360225 0220083 Right Rear Link
84 360226 0220084 Left Rear Link
85 360228 0220085 Right Front Link
86 360230 0220086 Left Front Link
87 360231 0240087 Trigger (Lower)
88 360232 0240088 Trigger (Upper)
89 360235 0240089 Lever
90 360237 0200090 Lifter Arm
91 360238 0240091 Safety Bar
92 360239 0200092 Right Lever Spring
93 360241 0200093 Left Lever Spring
94 360242 0240094 Safety Spring
95 360245 0200095 Firing Pin Spring
96 360249 0223096 Trapper Carbine & HOB Magazine Spring 16 1/8"
96 360250 0230096 Rifle & Carbine Magazine Spring
96 360252 0244096 Rifle & Musket Magazine Spring 30"
97 360254 0220097 Breech Block .32/20-.38Sp-.357Mag.
97 360255 0230097 Breech Block  .38/40-.44Sp-.44/40-.45LC
98 360261 0220098 Firing Pin
99 360265 0240099 Trigger Pin
101 360271 0240101 Lever Screw   (10-32)
104 360273 0200104 Firing Pin Stop
105 360274 0200105 Rear Link Pin
106 360275 0200106 Link Pin
107 360276 0200107 Lever Pin
108 360279 0220108 Extractor Pin .38spl
108 360280 0230108 Extractor Pin .44/40-.45LC
109 360281 0200109 Cam Lever Pin
111 360283 0240111 Safety Spring Pin
112 360285 0200112 Hammer Link Pin
113 360287 0220113 Magazine Follower .32/20-.38Sp-.357Mag.
113 360288 0230113 Magazine Follower .38/40-.44Sp-.44/40-.45LC
114 360291 0230114 Magazine Tube Plug   (15mm X 1mm)
115 360293 0200115 Hammer Link
118 360299 0223118 Trapper Carbine Magazine Tube 16 1/8"
118 360300 0230118 Carbine Magazine Tube 19"
118 360301 0232118 Rifle Magazine Tube 24 1/4"
118 360302 0241118 Rifle Magazine Tube Short 20"
118 360303 0244118 Rifle & Musket Magazine Tube 30"
118 360304 0266118 HOB Magazine Tube
119 360305 0400692 Rear Sight Screw   (3mm X 0.5mm)
121 360307 0200121 Carbine Band Screw   (3-56)
121 360310 0245121 Musket Band Screw   (3-56)
122 360311 0200122 Carbine Forend Screw   (6-40)
122 360312 0207122 Musket Forend Screw   (6-40)
123 360314 0240123 Side Plate Screw   (5mm X 0.8mm)
124 360315 0200124 Lever Spring Screw   (3mm X 0.6mm)
127 360319 0240127 Loading Gate  (3mm X 0.6mm)
128 360321 0240128 Loading Gate Screw  (3mm X 0.5mm)
167 360324 0240167 Lower Tang Screw   (5mm X 0.8mm)
178 360338 0200107 Hammer Pin
216 360350 0242216 Forend Cap
217 360352 0240217 Carbine Butt Plate Gate
218 360354 0240218 Dust Cover
224 360356 0240224 Dust Cover Guide
225 360357 0202225 Forend Cap Hanger
227 360358 0240227 Carbine Rear Sight Base Screw  (3mm X 0.5mm)
228 360359 0240228 Carbine Rear Sight Slide Stop Screw
230 360360 0240230 Carbine Butt Plate Gate Pin
231 360363 0240231 Carbine Butt Plate Gate Spring
232 360366 0240232 Carbine Butt Plate Gate Screw
233 360368 0240233 Dust Cover Screw  (3mm X 0.6mm)
234 360369 0300137 Dust Cover Detent Spring
237 360371 0240237 Lever Latch Spring
238 360372 0240238 Lever Latch Pin
240 360374 0240240 Trigger & Lever Screw  (3mm X 0.5mm)
275 360377 0202275 Magazine Tube Hanger
281 360378 0202281 Magazine Tube Hanger Pin
283 360379 0202283 Forend Cap Screw   (3mm X 0.5mm)
284 360380 0240284 Dust Cover Detent Ball
321 360382 0238321 Musket Rear Swivel Pivot
514 360387 0207514 Musket Middle Band
519 360388 0207519 Musket Front Swivel
520 360390 0238520 Musket Rear Swivel
521 360391 0238521 Musket Rear Swivel Pin
542 360395 0240542 Lever Latch
543 360396 0238543 Musket Rear Swivel Base
544 360398 0240544 Carbine Rear Sight Pin
549 360401 0238549 Musket Rear Swivel Base Screw
674 360410 0207674 Musket Middle Band Screw   (6-40)
