Marlin 94 Parts Diagram
Marlin 1894 Parts List

For parts prices, call 1-800-544-8892 (8A.M. to 4:30 P.M., Eastern Time, Weekdays)
Be sure to mention gun serial number when ordering parts

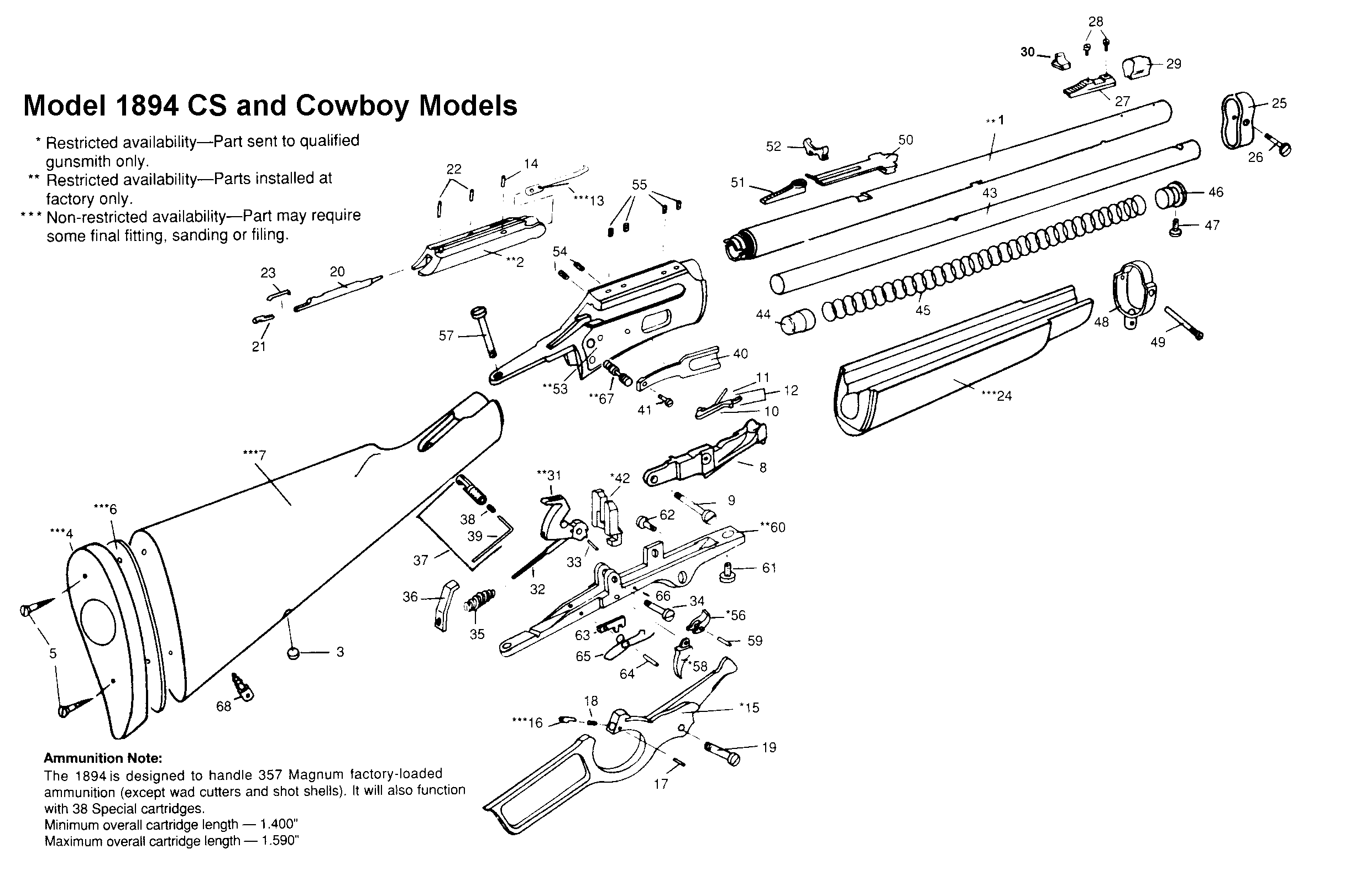

Graphic of Parts Breakdown

Part Name

Part Name

1    Barrel  2    Breech Bolt

      Breech Bolt Assembly (Not Shown)

(Consisting of parts 2,13, 14, and 20 through 23)

3    Bullseye

4    Buttpad

5    Buttpad Screw (2)

6    Buttpad Spacer

7    Buttstock Complete

8    Carrier Assembly

9    Carrier Screw

10    Ejector

11    Ejector Spring

12    Ejector in/Spring

13    Extractor With Spring

14    Extractor Retaining Pin

15    Finger Lever

16    Finger Lever Plunger

17    Finger Lever Plunger Pin

18    Finger Lever Plunger Spring

19    Finger Lever Screw

20    Firing Pin, Front

21    Firing Pin, Rear

22    Firing Pin Retaining Pin, (2)

23    Firing Pin Spring

24    Forearm

25    Front Band

26    Front Band Screw

27    Front Sight Base

28    Front Sight Base Screw (2)

29    Front Sight Hood

30    Front Sight Insert

        Front Sight Complete (Consisting of above 4 parts)

31    Hammer

32    Hammer Strut

33    Hammer Strut Pin

34    Hammer Screw

35    Hammer Spring (Main Spring)

36    Hammer Spring Adjusting Plate

37    Hammer Spur Complete

38    Hammer Spur Screw

39    Hammer Spur Wrench

40    Loading Spring

41    Loading Spring Screw

42    Locking Bolt

43    Magazine Tube

44    Magazine Tube Follower

45    Magazine Tube Follower Spring

46    Magazine Tube Plug

47    Magazine Tube Plug Screw

48    Rear Band with Stud

49    Rear Band Screw

        Rear Sight Complete includes parts 50,51, and 52)

50    Rear Sight Base

51    Rear Sight Elevator

52    Rear Sight Folding Leaf

53    Receiver

54    Peep Sight Dummy Screw (2)

55    Scope Mount Dummy Screw (4)

56    Sear

57    Tang Screw

58    Trigger

59    Trigger and Sear Pin

60    Trigger Guard Plate

61    Trigger Guard Plate Screw

62    Trigger Guard Plate Support Screw

63    Trigger Safety Block

64    Trigger Safety Block Pin

65    Trigger Safety Block Spring

66    Trigger Guard Plate Latch Pin

67    Safety Button Assembly  68 Swivel Stud. Rear
