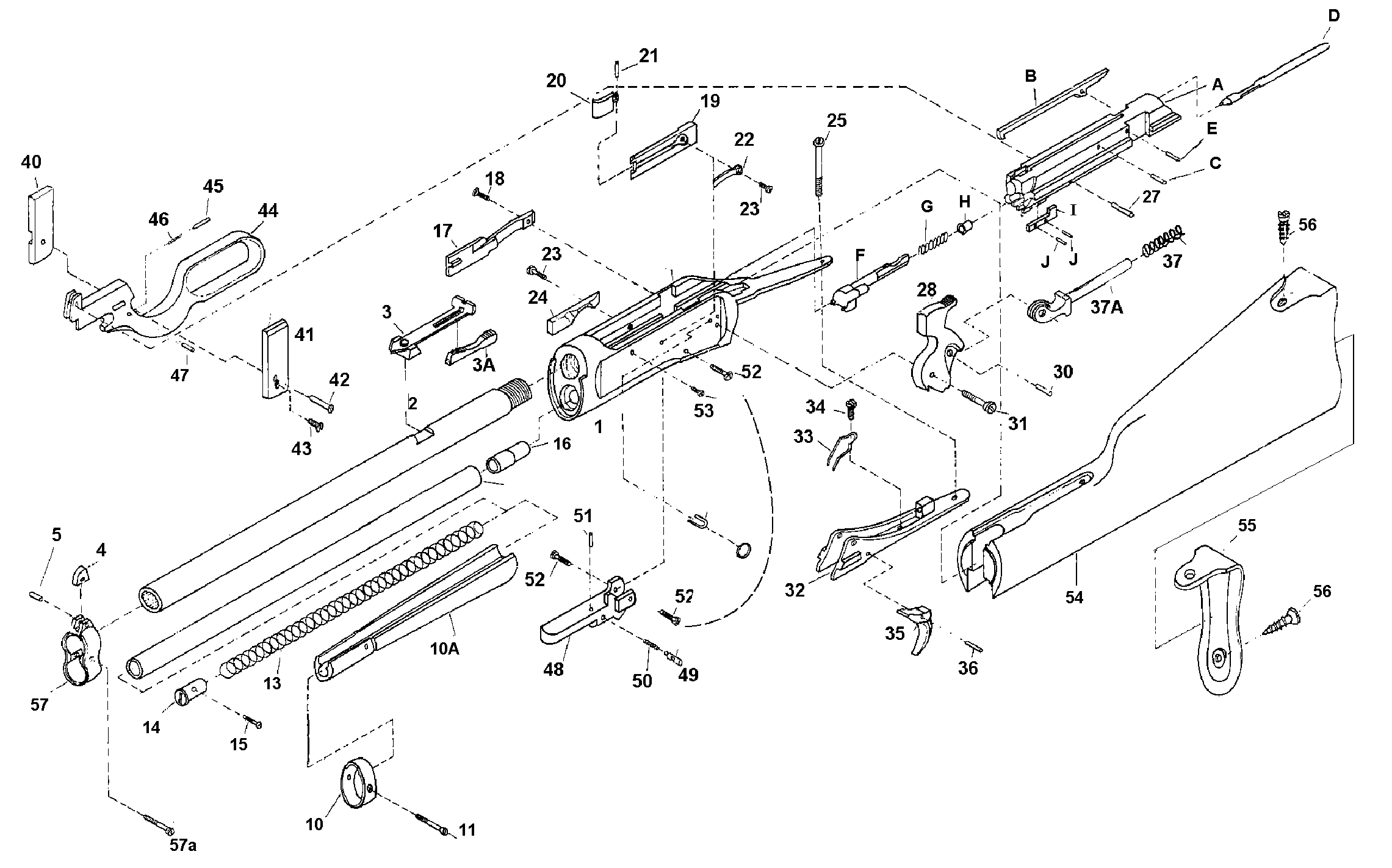

Rossi 92 Diagram

Rossi 92 Parts List

Key #	Description	Key #	Description
1	Receiver/Frame	33	Trigger Sprin
2	Barrel	34	Trigger Spring Screw
3	Rear Sight Assembly W/ Elevator	35	Trigger
3A	Rear Sight Elevator	36	Trigger Pin
4	Front Sight	37	Mainspring, Rifle
5	Front Sight Screw	38	Mainspring Screw
6	Tang Plug Screw, Upper	39	Mainspring Strain Screw
7	Forend Tip Tenon	40	Locking Bolt, Right
8	Magazine Ring	41	Locking Bolt, Left
9	Magazine Ring Pin	42	Locking Bolt Pin
10	Forearm Tip	43	Locking Bolt Pin Screw
10A	Forearm	44	Finger Lever
11	Forearm Tip Screw (2 Req'd)	45	Friction Stud
12	Magazine Tube	46	Friction Stud Spring
13	Magazine Spring	47	Friction Stud Stop Pin
14	Magazine Tube Plug	48	Carrier
15	Magazine Plug Screw	49	Carrier Stop
16	Magazine Follower	49	Carrier Stop
17	Lever & Breech Bolt Pin	50	Carrier Stop Spring
17	Spring Cover	51	Carrier Stop Pin
18	Spring Cover Screw	52	Carrier Screw (2 Req'd)
19	Cartridge Guide, Left	53	Lever & Breech Block Pin Hole Plug Screw
20	Cartridge Stop	54	Butt Stock
21	Cartridge Stop Joint Pin	55	Butt Plate
22	Cartridge Stop Spring	56	Butt Plate screw
23	Cartridge Guide Screw	A	Breech Bolt
24	Cartridge Guide, Right	B	Extractor
25	Rear Tang Sight Screw	C	Extractor Pin
25	Tang Screw, Upper	D	Firing Pin
26	Breech Bolt Assembly	E	Firing Pin Stop Pin
28	Hammer	F	Ejector
29	Hammer Stirrup	F	Ejector, Replacement
30	Hammer Stirrup Pin	G	Ejector Spring
31	Hammer Screw	H	Ejector Collar
32	Lower Tang	I	Ejector Spring Stop
57	Magazine Band & Screw - 57a	J	Ejector Sprint Stop pins
